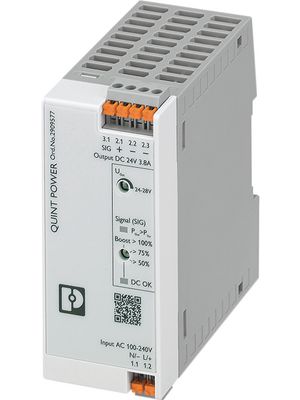

DIN Rail Mount Power Supply, 93.7%, 24V, 3.8A, 90W, Fixed

DIN Rail Mount Power Supply, Type=2909577 XXX, Alternative (Alias)=QUINT4-PS/1AC/24DC/3.8/PT, Depth=90 mm, Efficiency=93.7 %, Height=106 mm, Input Voltage Max.=240 V, Input Voltage Min.=100 V, Insulation Voltage=4 kV, MTBF=127200 h, Operating Temperature Max.=70 °C, Operating Temperature Min.=-25 °C, Output Current 1=3.8 A, Output Current 2=-888, Output Current 3=-888, Output Voltage 1=24 V, Output Voltage 2=-888, Output Voltage 3=-888, Output Voltage Nominal 1=24 V, Output Voltage Nominal 2=-888, Output Voltage Nominal 3=-888, Rated Power=90 W, Rated Power (VA)=-999, Ripple & Noise (%)=-999, Ripple & Noise (V)=45 mV, Width=45 mm, Output Type=Fixed, Protection Rating=IP20, Termination Type=Push-In, Input Voltage Nominal=100 ... 240 VAC 110 ... 250 VDC, Series=QUINT4 PS, Standards Met=DNV GL, UL, IECEE CB Scheme, cUL, EAC, cULus

2909577 XXX with product code You can purchase Phoenix Contact branded DIN Rail Mount Power Supply, 93.7%, 24V, 3.8A, 90W, Fixed product from our company.
