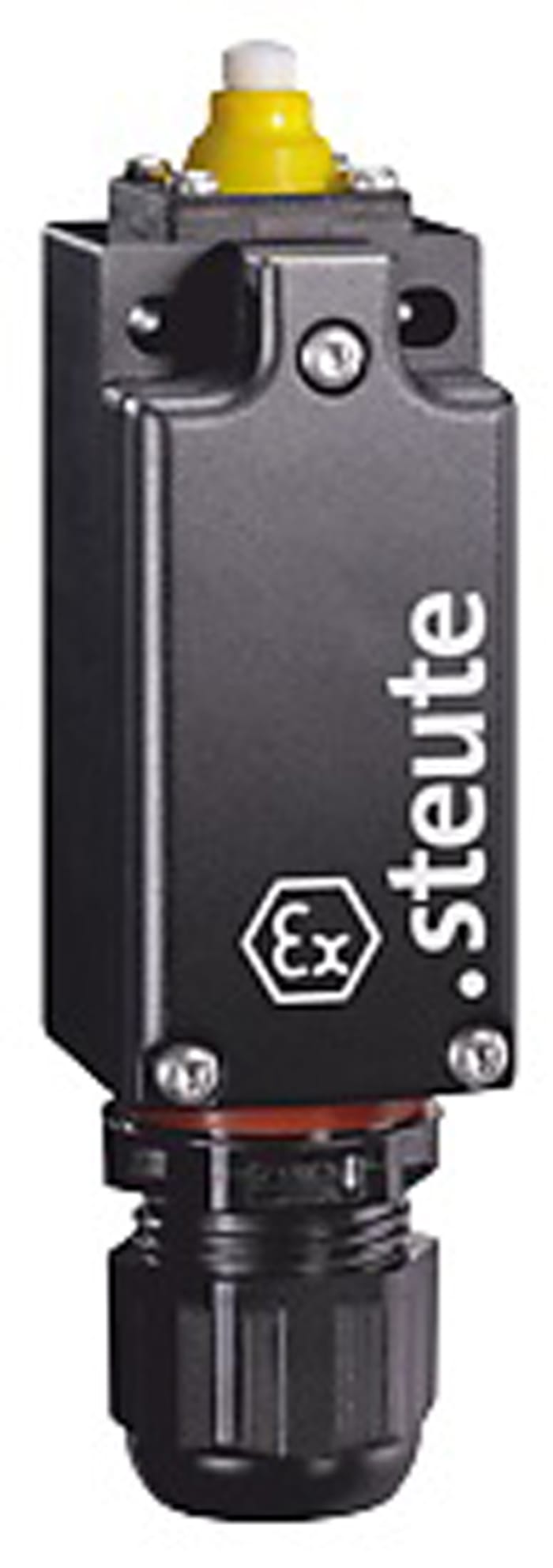

Limit Siviç (Sınır Şalteri), Plunger with Collar, Glass-Fibre, Thermoplastic, IP66, IP67, IP69, 400V ac, 2NC Kontak

EX 97 Limit Switches Steute Ex 97 limit switches are used where moving parts of machines and industrial plants have to be positioned, controlled and monitored. The Ex safety position switches are suitable for sliding and hinged safety guards, which need to be closed to ensure the necessary operational security.
The Ex 97 limit switches feature slow or snap action, positive break NC contacts and are available with various contact configurations.

< /tbody>

Brand	Steute
Actuator Type	Piston
Pole and Pulse Configuration	DPST
Normal State Configuration	2NC
IP Value	IP66, IP67, IP69
Maximum Current	4A
Enclosure Material	Glass Fiber Reinforced Thermoplastic
Maximum AC Voltage400V
Connection Type	Cable
Series	Ex 97
Transaction Type	Positive Break , Slow Action
Length	787.4mm
Minimum Operating Temperature	-60°C
Depth	812.8mm
Hazardous Area Certificate	IECEx
Width	2057.4mm
Maximum Operating Temperature	+55°C
Mounting Direction	Vertical
Mechanical Life	Vertical strong>	>1000000Transactions
Origin	DE

Ex ES 97 W 02 -60 c with product code You can purchase Steute branded Limit Siviç (Sınır Şalteri), Plunger with Collar, Glass-Fibre, Thermoplastic, IP66, IP67, IP69, 400V ac, 2NC Kontak product from our company.
