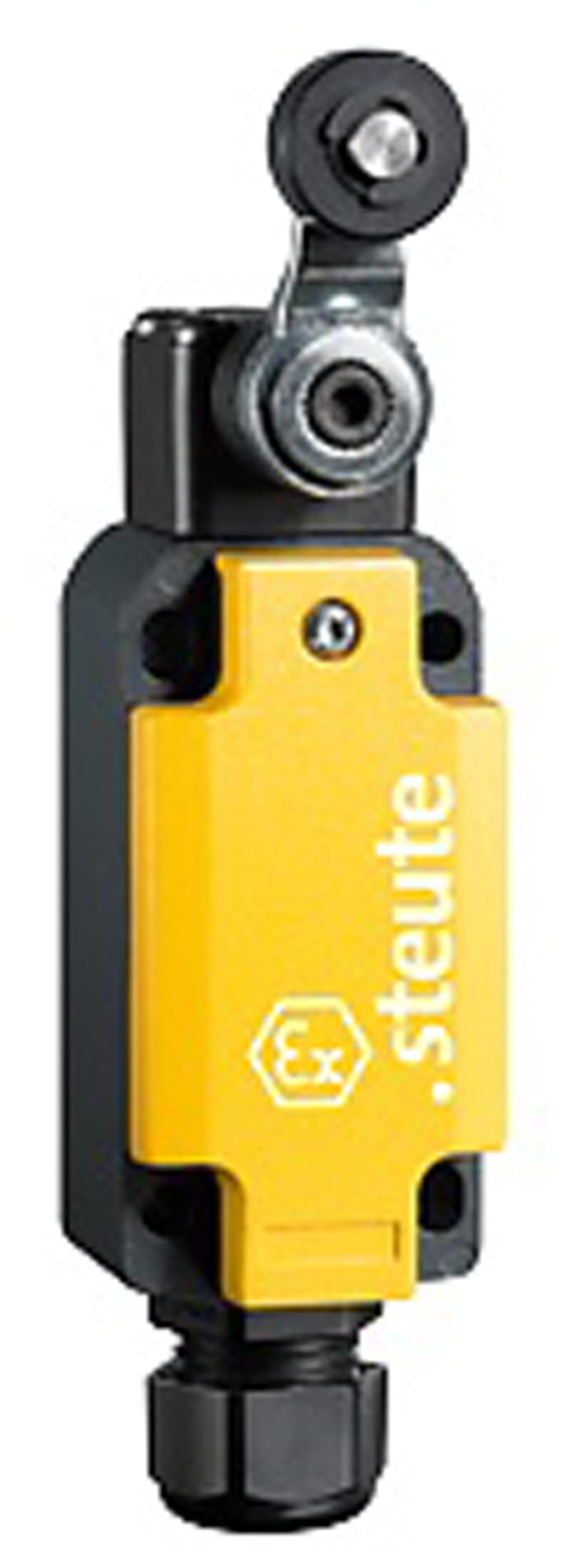

Limit Siviç (Sınır Şalteri), Kollu, Pozitif Kapalı, Yavaş Tepkili, Alüminyum, IP66, 250V, NC/NO Kontak

EX 98 Limit Switches Steute Ex 98 limit switches are used where moving parts of machines and industrial plants have to be positioned, controlled and monitored. The Ex safety position switches are suitable for sliding and hinged safety guards, which need to be closed to ensure the necessary operational security.
The Ex 98 limit switches feature slow action positive break NC contacts and are available with various contact configurations.

Brand	Steute
Actuator Type	Arm
Pole and Pulse Configuration	DPST
Normal State Configuration	NO/NC
IP Value	IP66
Maximum Current	T6 4.4 A, T5 6.6A
Enclosure Material	Aluminum
Maximum AC Voltage	250V
Maximum DC Voltage	125V
Connection Type	Cable
Serial	Ex 98
Transaction Type	Positive Break, Slow Action
Length	1016mm
Maximum Operating Temperature	+70° C
Minimum Operating Temperature	-40°C
Depth	1524mm
Hazardous Area Certificate	IECEx
Width	3365.5mm
Mounting Direction
strong>	Vertical
Mechanical Life	>1000000Operations
Origin	DE

Ex ES 98 D-11 -40C with product code You can purchase Steute branded Limit Siviç (Sınır Şalteri), Kollu, Pozitif Kapalı, Yavaş Tepkili, Alüminyum, IP66, 250V, NC/NO Kontak product from our company.
