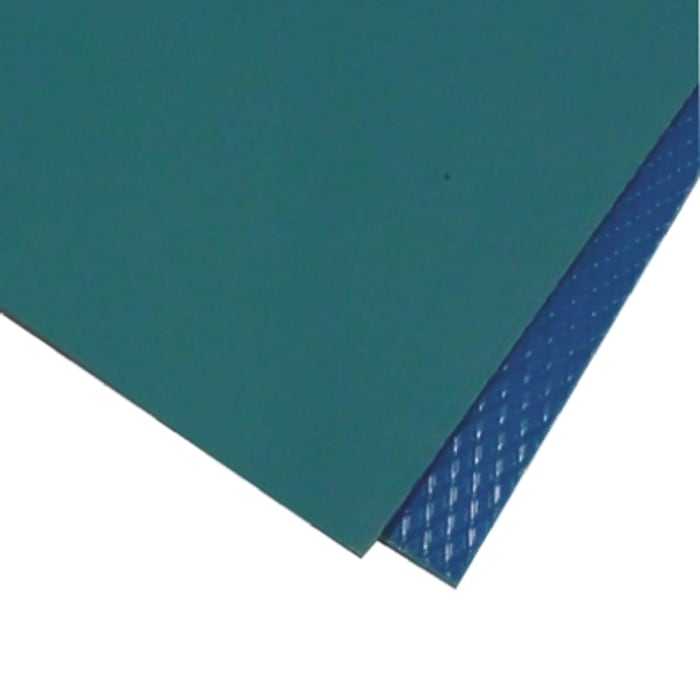

Bergquist Self-Adhesive Thermal Interface Sheet, 0.04in Thick, 2W/m·K, Gap Pad 2200SF, 100 x 100mm

Gap Pad® 2200SF Gap Pad® 2200SF is a thermally conductive, electrically isolating, silicone-free polymer specially designed for silicone-sensitive applications. The material is ideal for applications with uneven topologies and high stackup tolerances. Gap Pad® 2200SF is reinforced for easy material handling and added durability during assembly. The material is available with a protective liner on both sides. Gap Pad® 2200SF is supplied with reduced tack on one side allowing for b

Brand	Bergquist
Dimensions	100 x 100mm
Thickness	0.04inch
Length	100mm
Width	100mm
Thermal Conductivity	2W/m·K
Material	Gap Pad 2200SF
Self-Adhesive	Yes
Minimum Operating Temperature	-60°C
Maximum Operating Temperature	+125°C
Hardness	Shore OO 70
Material Trade Name	Gap Pad 2200SF
< strong>Operating Temperature Range	-60 → +125°C
Origin	US

GP2200SF-0.040-02-00-100x100 with product code You can purchase Bergquist branded Bergquist Self-Adhesive Thermal Interface Sheet, 0.04in Thick, 2W/m·K, Gap Pad 2200SF, 100 x 100mm product from our company.
