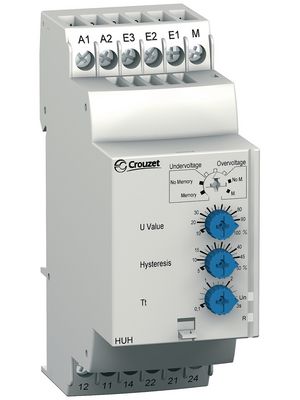

Voltage Monitoring Relay, 2CO, 5A, 250V, 1.25kVA

Voltage Monitoring Relay, Type=HUH, Contact Current - AC=5 A, Contact Current - DC=5 A, Contact Voltage - AC=250 V, Contact Voltage - DC=250 V, Depth=60 mm, Frequency Max.=70 Hz, Frequency Min.=40 Hz, Height=90 mm, Measuring Voltage - AC Max.=600 V, Measuring Voltage - AC Min.=15 V, Measuring Voltage - DC Max.=600 V, Measuring Voltage - DC Min.=15 V, Operating Voltage Max. - AC=264 V, Operating Voltage Max. - DC=264 V, Operating Voltage Min.=20.4 V, Power Consumption=3.5 VA, Switching Capacity=1.25 kVA, Width=35 mm, Contact Configuration=2CO, Mounting Type=DIN Rail Mount, Protection Rating=IP30, Termination Type=Screw Terminal, Standards Met=CSA UL Listed

HUH with product code You can purchase Crouzet branded Voltage Monitoring Relay, 2CO, 5A, 250V, 1.25kVA product from our company.
